Whisker Carbon Nanotubes

5D-Materials Whisker Carbon Nanotube Product Advantages

1. High Purity: Purity ≥99.95%, magnetic residues ≤1 ppm, key metallic impurities (e.g., Fe) <30 ppm
2. Superior Conductivity: Graphitization degree up to 84.9%, ultra-low intrinsic volume resistivity (<15 mΩ·cm at 20 MPa)
3. Controlled Structure: Linear (whisker-like) morphology synthesized via CVD, with precise length (6±2 μm) and diameter (75–150 nm) control
4. Compatibility: Excellent dispersion in both dry electrode processes and solvent-based wet coating, adaptable to mainstream manufacturing
5. Reduced Electrode Resistance: When blended with carbon black in cathodes, it significantly lowers electrode volume resistivity to below 2.95 Ω·cm
6. Broad Applicability: Cathodes, Compatible with LFP, NCM523, high-nickel NCM811, NCA, etc; Anodes, enhances charge transfer in graphite anodes and buffering for silicon-based anodes; Advanced Systems, used in dry supercapacitors, sulfide solid-state batteries.
7. Production Capacity: Annual output of 200 tons of powder and 2000 tons of slurry, supporting customized large-scale supply.
8. Certifications: IATF16949 (automotive) and ISO9001 certified.

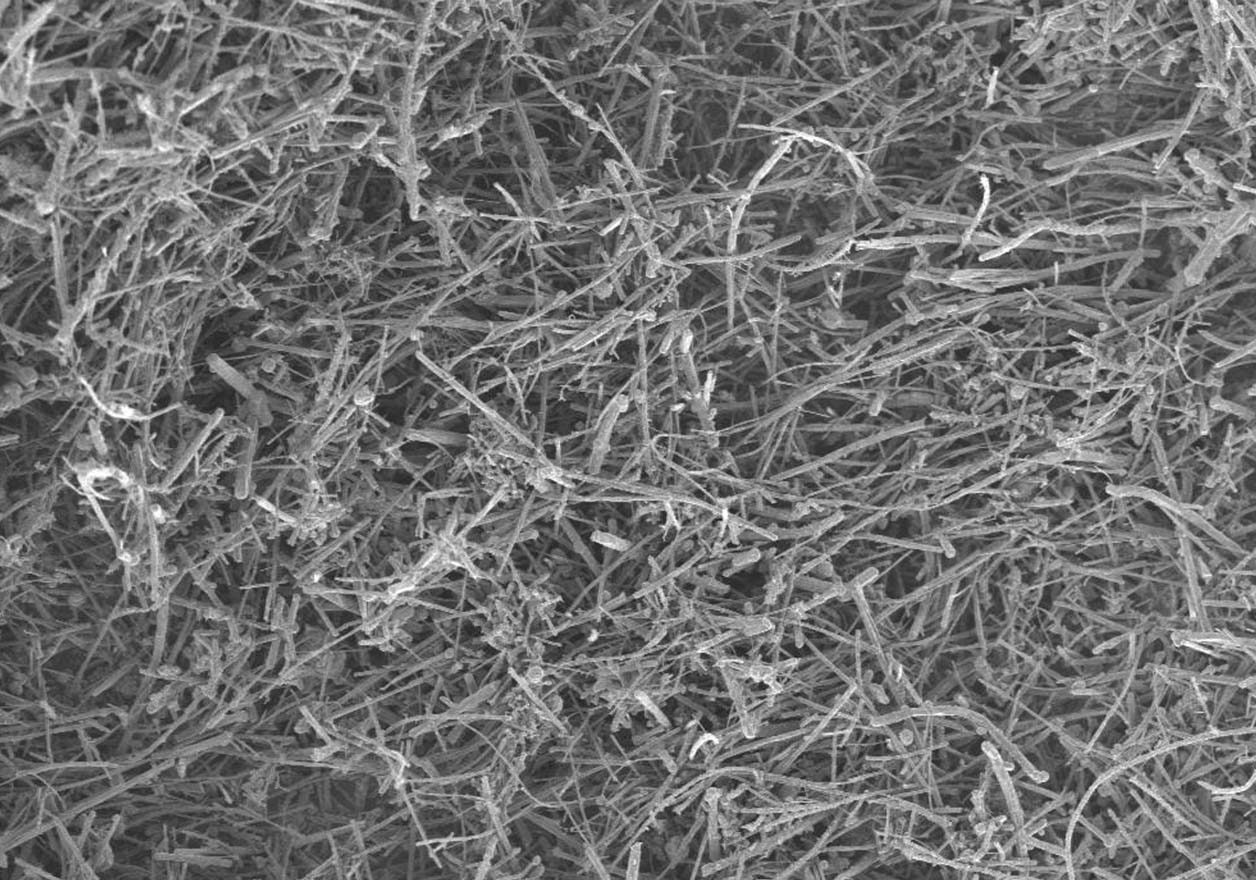

9. Quality Assurance: Full-range batch testing via SEM, laser particle size analysis, and battery performance systems.

Whisker Carbon Nanotubes Application Areas

1. Composites: Aerospace components, automotive parts, wind turbine blades, high-end sports equipment, ceramic tools, electronic packaging substrates.
2. New Energy: Li-ion batteries (conductive additive/anode carrier), supercapacitors, photovoltaic electrodes, fuel cell proton exchange membranes.
3. Semiconductors: Flexible electronics (displays, wearables), transistors, electromagnetic shielding, chip/LED thermal management .
4. Biomedicine: Drug delivery carriers, bio-imaging probes, biosensors, tissue engineering scaffolds .
5. Aerospace: Spacecraft components/thermal insulation, bulletproof armor, stealth materials, rocket fuel tanks .
6. Environment: Water treatment (adsorption of heavy metals/organics), industrial exhaust purification, air filter cores .
7. Emerging Fields: Smart textiles, modified desalination membranes, catalyst supports.

What are Whiskers & Carbon Nanotubes?

Whiskers are slender, high‑purity single crystals grown under controlled conditions. Their near‑perfect structure—free from grain boundaries, dislocations and voids—gives them strength approaching inter‑atomic bonding forces (e.g., SiC whiskers: tensile strength >27 GPa, modulus >500 GPa). This defect‑free nature also leads to exceptional electrical, optical, magnetic, and even superconducting properties.

Carbon‑nanotube fibers are fabricated by spinning or drawing multi‑ or single‑walled nanotubes. Their diameter is typically controllable from 5 to 100 μm or more. While individual nanotubes outperform conventional carbon fibers, the overall mechanical properties of CNT fibers still need improvement due to weak inter‑tube bonding.
